Smart inspection in seconds
Designed originally for consumer electronics, our deep learning based defect detection system identifies surface imperfections on glossy, shiny or rough surfaces in seconds. Reduce costs in the manufacture or refurbishment of any mobile device, small machined part or assembly, or other products.
Key Benefits
- Advanced machine vision & deep learning algorithms allow easy addition of new devices to inspection library
- Surface defect detection distinguishes desired features from anomalies while tolerating natural variations in complex patterns
- Detects defects on glossy, shiny or rough surfaces
- Easy setup and operation with automatic orientation of part for inspection
- Provides precise part placement without marring the part surface
- Rapid inspection part programming allows for efficient setup of different part configurations
- Identifies production defects in real-time, enabling adjustment of upstream processes to reduce waste
- Available as a standalone system or as an option on other DWFritz metrology and assembly systems
Key Features
- High powered GPU image processing system
- High resolution camera with global shutter optimizes field of view and measurement precision
- Custom multispectral lighting and strobe controller
- Custom fixturing and part handling capabilities
- Small 112 cm x 70 cm footprint
- Manual or auto-load

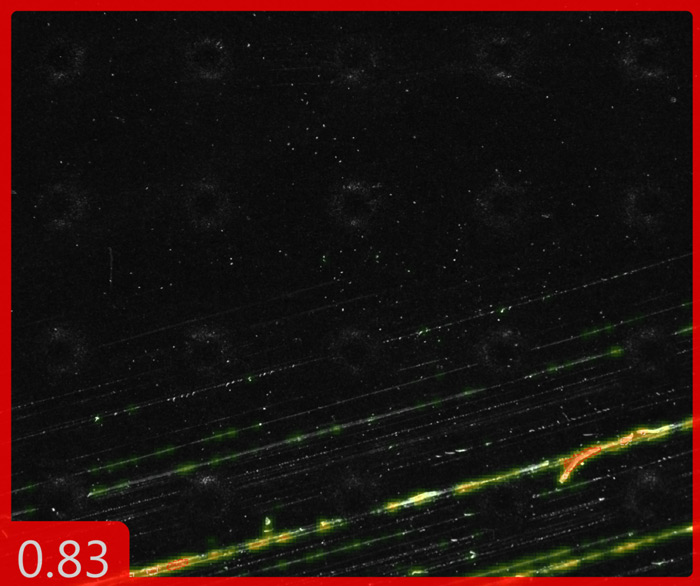

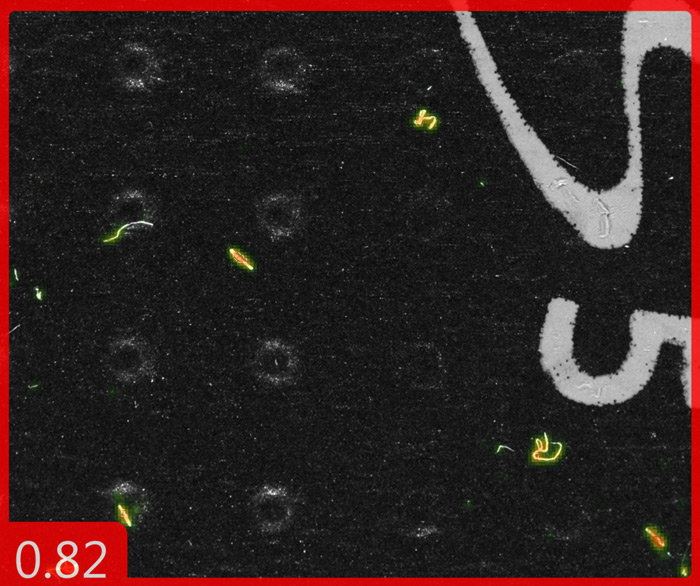

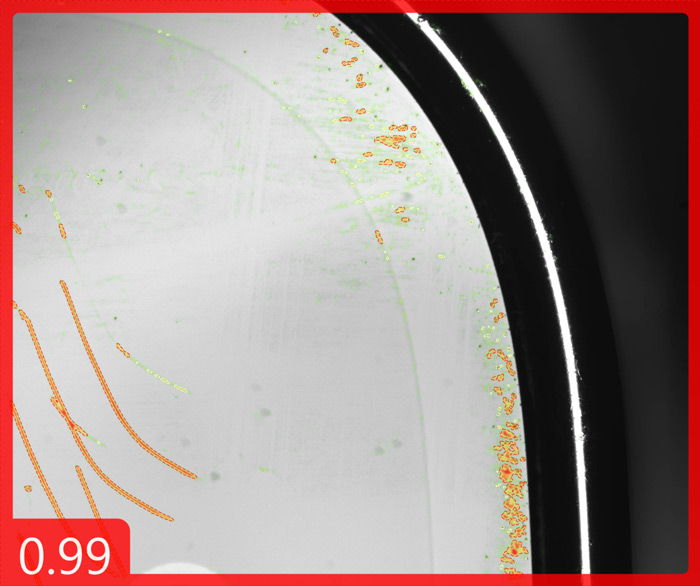

High-Definition Inspection Images
Ready to begin?
Specifications
Improve Quality While Reducing Manufacturing Costs
| Work Volume | 203 x 135 x 6 mm (L x W x H) |
| X-axis | 600 mm [± 2 μm repeatability] |
| Y-axis | 220 mm [± 2 μm repeatability] |
| Z-axis | 10 mm [± 2 μm repeatability] |
| Theta-axis | ∞, 5 μm runout |
| Payload | 0-5 kg range |
| Pitch | 180° [± 0.004° positional accuracy] |
| Lighting | Custom strobe, bright field, dark field, coaxial |
| Camera | 5 MP [3.45 μm resolution] |
| Electrical service | 208-240 VAC 50/60 Hz 15A, 1-Phase |
| CDA/AIR service | 142 l/min [5 CFM] @ 0.55 MPa [80 psi] |
| System dimensions | 112 x 70 x 209 cm (W x D x H) |
| System weight | 725 kg (1600 lbs) |
| System controllers | High performance industrial PC operator station with touch screen and secondary display screen |
| Options | Barcode reader |
