Ensuring Pharmaceutical and Medical Inspection Compliance with Machine Vision

In the highly regulated world of medical device and pharmaceutical manufacturing, “quality control” is more than a process–it is a risk mitigation strategy. With FDA scrutiny at a 15-year high, the ability to detect microscopic defects in package seals and labeling is the difference between a successful product launch and a catastrophic Class I recall.

automated inspection package seals medical manufacturing

The Rising Stakes of Noncompliance

The regulatory landscape in 2024 and 2025 has seen a significant surge in enforcement. According to recent FDA and Sedgwick data, medical device recalls reached a four-year high in 2024, with “manufacturing defects” and “packaging failures” emerging as leading causes.

For manufacturers, three categories of failure represent the highest risk:

Content Verification: Ensuring the right product is in the right box with the correct orientation.
Defective Seals: Identifying breaches in the sterile barrier.
Labeling Issues: Verifying OCR (Optical Character Recognition) data, barcodes, and pinholes in the label itself.

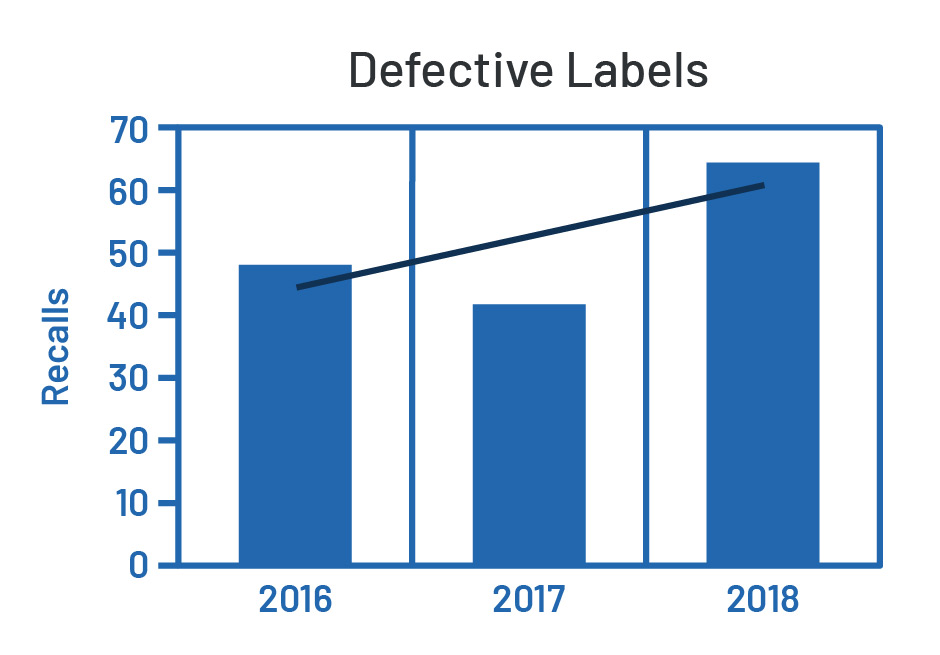

recalls defective labels new — Figure 1. Medical device recalls, year-over-year, 2016-2018

Why Human Vision is No Longer Sufficient

For decades, manual inspection was the industry standard. However, as production speeds increase, the limitations of the human eye become a liability:

The 50-Micron Threshold: The industry standard for a sterility breach is often set at 50 microns, roughly the width of a human hair.
The Saccadic Effect: Human visual acuity drops significantly over time due to fatigue. Research shows that human inspectors typically catch only 80-85% of defects, leaving a 15% “quality escape” rate that is unacceptable for Class III medical devices.
Speed vs. Accuracy: Inspectors are often forced to evaluate complex seals in under five seconds, leading to subjective and inconsistent results.

“Manual inspection is inherently error-prone because contaminants like hair or hidden particles are extremely challenging to see at production speeds,” says John Fouts, senior controls software engineer at DWFritz.

human error new — Figure 2. Key risk factors to product failures

Ready to begin?

Three Pillars of Automated Defect Detection

To achieve a zero-defect standard, DWFritz utilizes a universal hardware platform that combines three distinct inspection techniques.

1. Rule-Based Software (Metrology)

Ideal for dimensional applications, rule-based systems measure specific geometric deviations.

Strengths: High speed and extreme repeatability
Use Case: Checking if a component is the correct length or if a label is placed within 0.5mm of the target.

2. Example-Based AI (Deep Learning)

Traditional vision systems struggle with “noisy” backgrounds or unpredictable defects. Deep Learning mimics human judgment by training on thousands of “good” and “bad” images.

Strengths: Identify cosmetic flaws, wrinkles, or anomalies that lack a fixed mathematical definition.
Use Case: Detecting a “spoiled” seal or a hair trapped in a transparent pouch where contrast is low.

3. Machine-Assisted Manual Inspection (MAMI)

MAMI is a hybrid approach used for the most complex “gray area” cases. The machine vision system filters out 99% of the clear “pass/fail” units, leaving only a tiny subset of ambiguous parts for a human to review on a high-resolution screen.

Advantages: Reduces operator strain, eliminates the need for microscopes, and provides a digital checklist for full traceability.

s can identify defects complicated by noisy backgrounds or an inability to obtain high-contrast.

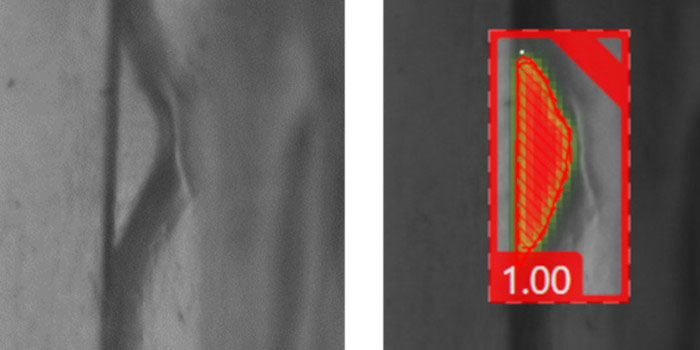

automated part inspection anomaly detection — Figure 3. By training the system to identify good versus defective parts, the system can search and classify these images. The red area on the right is the processed image where the software detected an anomaly.

The Long-Term ROI: Risk to Resilience

Implementing precision automation solutions is an investment in the longevity of your brand. By collaborating early in the defect-training process, manufacturers can define clear acceptance criteria and achieve the required GR&R (Gauge Repeatability and Reproducibility).

Choosing the right precision automation services partner ensures that your inspection process is not a bottleneck, but a robust defense against the high costs of non-compliance.

Frequently Asked Questions

What are the main causes of FDA medical device recalls in 2025?

Packaging failures, labeling errors, and manufacturing defects remain the top causes. Recent data shows that Class I recalls (the most serious) have reached their highest level in 15 years, primarily driven by sterility breaches and device failures.

What is the sensitivity of automated seal inspection?

High-precision systems can detect defects down to 50 microns, which is the widely accepted threshold for microbial ingress in sterile medical packaging. Advanced systems using Deep Learning can often identify even smaller anomalies in low-contrast environments.

How does Deep Learning improve pharmaceutical inspection?

Unlike rule-based systems, Deep Learning (AI) can be trained on examples of “good” and “bad” parts. This allows the system to recognize complex, unpredictable defects like seal wrinkles or foreign matter inclusions that do not have a uniform shape or size.
