In high-speed manufacturing, lighting and timing are the fundamental pillars of measurement accuracy. When parts move at high velocities, even micro-millisecond delays in illumination can result in motion blur, rendering an inspection system useless. To achieve reliable results, precision automation solutions must effectively “freeze” motion using high-intensity, synchronized strobe lighting.
The Science of Freezing Motion: Why Timing is Everything

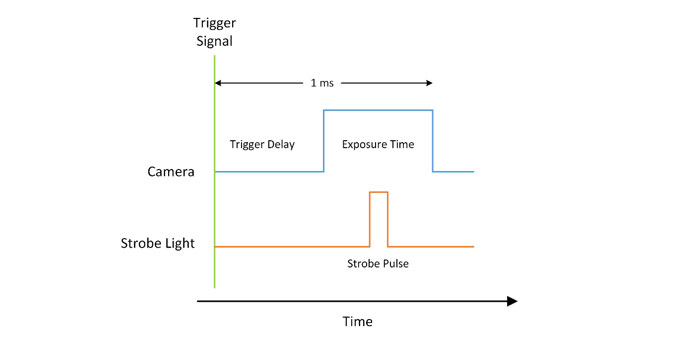

Machine vision systems do not analyze an object directly; they analyze the light reflected from it. In a high-speed environment, the success of a precision inspection system depends on the deterministic synchronization of three elements:
- The Stage Motion Encoder: Providing the exact spatial location of the part.
- Camera Exposure: The precise window the sensor is open to receive light.
- LED Strobe Lighting: High-intensity pulses that illuminate the part at the exact moment of exposure.
If these elements are out of sync, the result is a dark or blurry image. Furthermore, if the timing is not repeatable, the desired feature may shift within the frame. This is a critical failure when measuring distances between features across multiple images.
Overcoming Low-Contrast Challenges
According to recent vision system benchmarks, applications involving image contrasts below 20% present the highest failure rates for automated systems. In these scenarios, even slight variations in LED intensity can compromise the inspection.
Precision automation services address this by using directional lighting to cast intentional shadows, highlighting edges that would otherwise be invisible. The goal is to maximize contrast for the features of interest while suppressing “clutter” from the surrounding background.
Ready to begin?
Engineering Custom Lighting Solutions

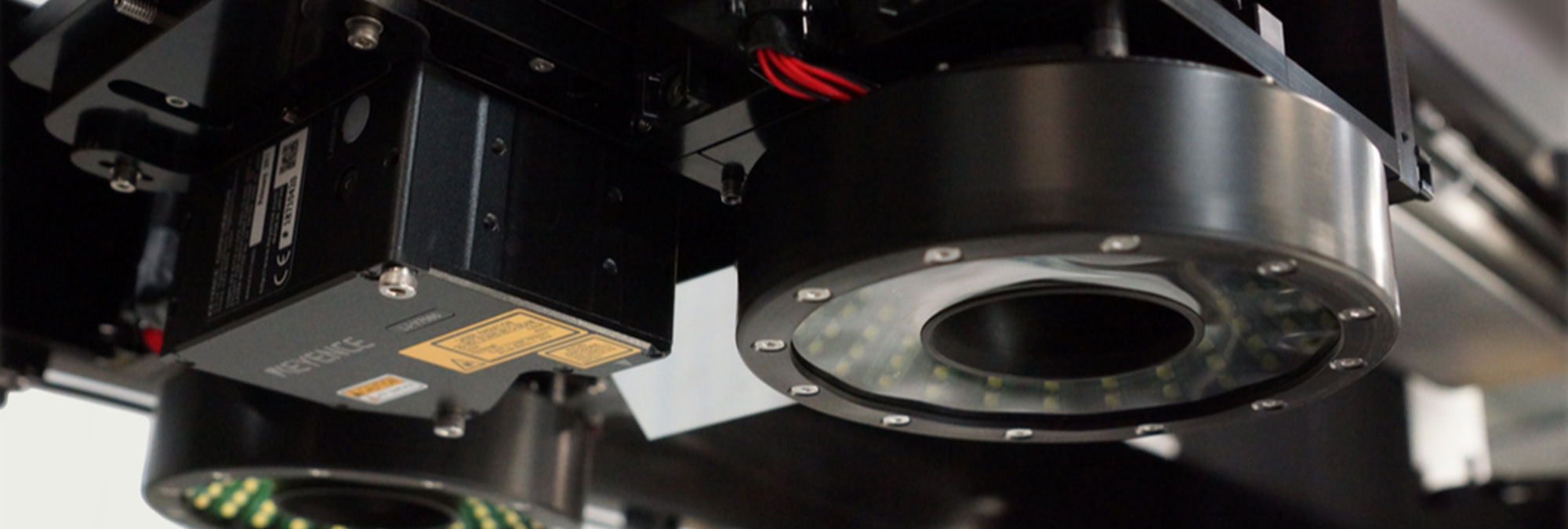

At DWFritz, we believe that difficult inspection applications cannot be solved with off-the-shelf components alone. Our engineers develop custom metrology platforms that leverage proprietary light engines. These systems consist of:
- Multi-Channel LED Controllers: Capable of generating massive instantaneous power for short durations.
- Encoder-Based Triggering: Application-specific algorithms use the pulse train from the stage encoder to orchestrate triggers in milliseconds.
- Programmable Parameters: Multiple images of a single part can be captured by changing light intensity and angles per trigger, allowing for diverse inspections in a single pass.
Strobing the LED array provides the high-intensity light required for high-speed capture without the heat buildup that would otherwise degrade the life or performance of the LEDs.
Identifying the Ideal Illumination Scheme
Selecting the right lighting geometry is essential for accurately capturing a part’s surface properties, such as color, finish, and transparency.
On-Axis (Bright Field) Illumination
This configuration provides even, flat, diffuse light. It is the standard for non-reflective surfaces like matte metals or plastics.
- Tools: Dome lights and coaxial illuminators.
- Use Case: Best for flat surfaces where you want to see the “face” of the part clearly.
Off-Axis (Dark Field) Lighting
Dark field lighting reflects the majority of light away from the camera lens. Only edges, scratches, or textures reflect light back into the sensor.
- Tools: Low-angle ring lights or spotlights.
- Use Case: Ideal for identifying surface defects, scratches on polished surfaces, or finding subtle height transitions.
The Ant’s Eye View

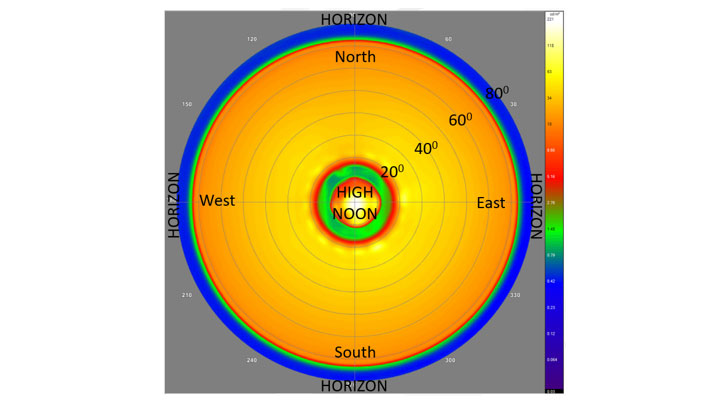

To find the ideal lighting, DWFritz engineers analyze the light from the perspective of the Region of Interest (ROI). Imagine an ant on the part looking up: Does it see a “high noon” sun (collimated coaxial), a “45° sunrise” (directional), or a “cloudy day” (uniform dome)? The angle of arrival determines exactly how features will appear to the vision algorithm.
Predictable Precision for Enterprise Manufacturing
The ultimate goal of high-speed precision inspection is repeatability. By mastering the intersection of motion control, custom lighting, and high-speed optics, DWFritz ensures that shot number one and shot number ten million are virtually identical. This level of consistency is what allows global manufacturers to maintain high throughput without sacrificing quality.
Frequently Asked Questions
How does strobe lighting improve high-speed machine vision?
Strobe lighting uses short, high-intensity bursts of light to “freeze” the motion of a part moving at high speeds. By synchronizing the strobe with the camera exposure and stage encoder, precision automation solutions can capture crisp, blur-free images for accurate measurement.
What is the difference between bright field and dark field lighting in inspection?
Bright field (on-axis) lighting provides even illumination for flat, non-reflective surfaces. Dark field (off-axis) lighting hits the part at a low angle, reflecting light away from the camera except where it hits edges or defects, making it ideal for finding scratches or surface imperfections.
Why is encoder-based triggering important for precision inspection?
Encoder-based triggering ensures that the camera and light source are activated based on the physical position of the part rather than a simple timer. This ensures the part is always in the same location in every image, which is vital for high-speed, high-precision measurements.
